Repair Log… (10/4/11)

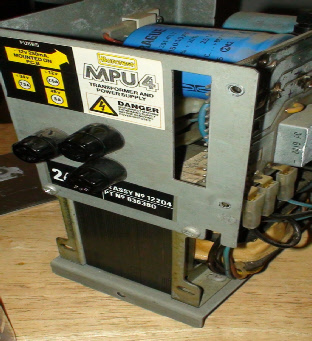

MPU4 – PSU Fault



Fault diagnosis.



Machine continually resets. Initial inspection.

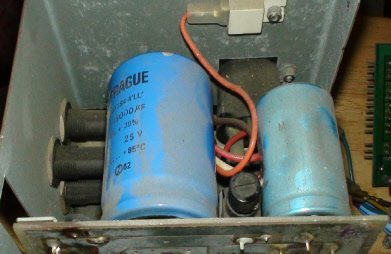

Electro-caps are probably 20+ years old.

C2 is dented. The whole set-up looks grim.

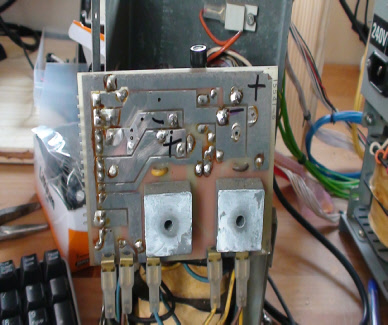

Remove the fixing screws and remove the power supply pcb. There are 3 electro caps which need replacing,



C1 = 4700uF - 63VDC

C2 = 15000uF - 25VDC

C3 = 1000uF - 16V



If  you are unsure about polarity, check the psu schematic here and buzz out the cathode to the red connector.

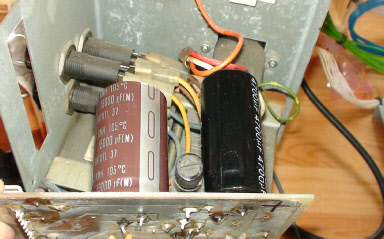

Repaired.
